Dashboards that understand your plant
Model-aware dashboards, exploration, and notebooks, built on the Synapse graph.
Lens builds on the same model Synapse stores. Because every asset of a kind shares the same defined properties, one panel can chart a property across a whole set of assets at once. You build by picking assets and properties from your hierarchy instead of writing queries, and you click any value through to the asset behind it.
[ visualization ]
Visualization that speaks your model

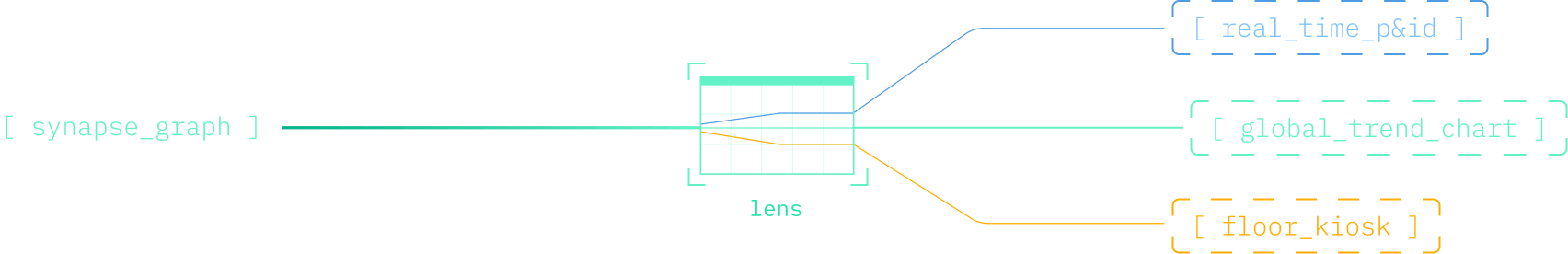

Lens reads the same model Synapse stores, so the things you chart are assets and properties, not raw tags. You assemble a view by picking from your hierarchy: one panel covers every asset that shares a property, and any value links straight back to the asset it came from. The panel library is built for industrial work, and Explore handles the questions a fixed dashboard never anticipated.
01 // MODEL-AWARE
One panel, your whole fleet.

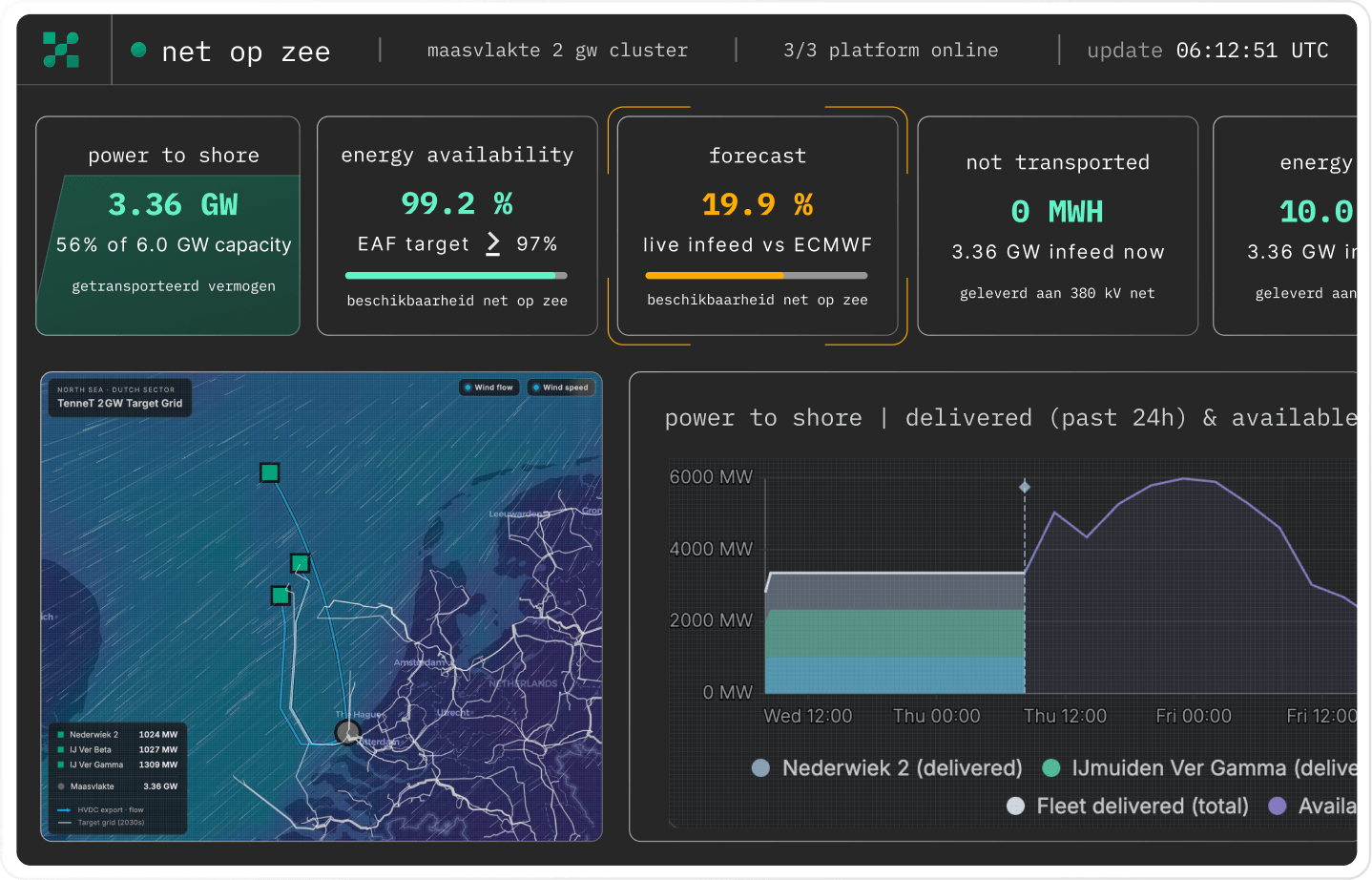

Every asset of a kind carries the same defined properties, so a single panel can render that property across all of them at once. Pick temperature and scope it to the pumps under a site, and every pump shows up on the same chart, with no per-asset wiring. You build a dashboard for the job in front of you, and the shared property model does the fan-out.
02 // PANEL LIBRARY
Built for the plant floor.

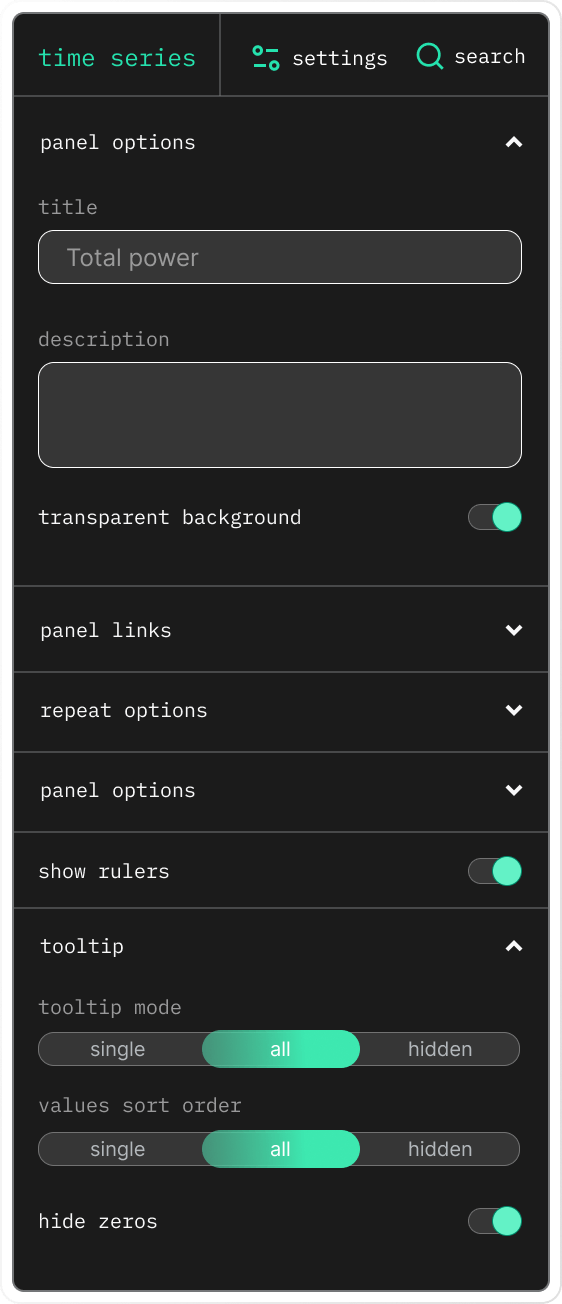

Lens ships the panels operations actually use: trends, gauges, single-value stats, tables, P&IDs, and batch and cycle views, with thresholds and value mappings so a reading reads green, yellow, or red at a glance. Structured alarms overlay directly on the charts, carrying severity and lifecycle, so an operator sees what happened and when, not just a line that dipped.
03 // INVESTIGATE
From a chart to the answer.
Every value on a Lens dashboard carries its asset and property identity. Click a point to open the asset, or send it to Explore with the query already loaded, then run ad hoc HQL to chase whatever the dashboard surfaced. The path from "that looks off" to a real investigation is one click, and it stays inside Lens.
04 // WORKBOOKS
Go deeper with notebooks.
Lens Workbooks are analytical notebooks backed by the Helixer SDK: query your data, compute and chart it with the full Python data-science stack, and write the narrative alongside. Schedule a workbook to run on its own and turn its results into derived datasets. It is the step from watching a dashboard to explaining what it means.
Unlimited viewers and kiosks
Same permissions as the console
Variables from your hierarchy
No-code Grafana datasource
Pay for editors. Not for viewers.
One Lens environment is one flat annual fee. Read-only viewers and shop-floor kiosks are unlimited and included. You license only the editors who build dashboards, and add more in small steps as the team grows. There are no compute tiers to size and no re-pricing as your dashboards multiply.
Self-hosted
from
€9,000
per year per environment
Run Lens on your own infrastructure, alongside your Synapse environment. Capacity scales with the hardware you provision.
Managed SaaS
from
€10,500
per year per environment
Hosted and operated by Helixer. Pick an instance type sized to your workload with HA, replicas and DR fully included in the price.
Included:
Unlimited viewers, unlimited kiosks, 20 editors, the model-aware panel library (trends, gauges, stats, tables, P&IDs, batch and cycle views), Explore, and the Grafana datasource. SaaS bundles HA and DR.
Add-ons
Editor Pack
plus
€750
per year per 5 editors
More authoring seats on the same environment. Above 100 editors, talk to us.
Lens Workbooks Self-hosted
plus
€6,000
per year per environment
Analytical notebooks, scheduled execution, and derived datasets.
Lens Workbooks SaaS
from
€7,200
per year per environment
On SaaS the price covers both the feature and the managed compute that runs your notebooks.
Lens has no Resilience Pack
Your data lives in Synapse, so there is nothing on the Lens side to make resilient.
3-day proof of value sprint
In just three days, our team joins you on-site to connect your first machines, visualize live data, and reveal tangible opportunities for improvement.
No long contracts, no empty promises, just proof that Helixer OS delivers real value where it matters most: on your shop floor.
